Stainless Steel 304 Knit Wire Mesh - Knitted Woven mesh with ripple-Corrugated Knitted 304 SS Mesh - Tubular Mesh - Panels

304 Stainless Steel Knit Wire Mesh is used in high temperature, acid resistant and alkali resistant work environments.

Knitted Wire Mesh
SS304 or SS430
Diameter: .0045"
Width: 28"
Cells Per inch: 6-8
Number of Needles" 240
Estimated order quantity: 500 - 1000 lbs per mont

SS 304 Kitted Wire Mesh Screen

SS 304 kitted wire mesh, wire diameter .0135, screen opening 1/8 inch.

Stainless Steel 304 Knit Wire Mesh Roll

Roll width: 100mm
Wire DIA: 0.2 mm
Style York / ACS 931/326/431 or Equivalent

Stainless Steel 304 Knit Wire Mesh roll
Width: 200mm
Wire DIA: 0.2 mm
Style York / ACS 931/326/431 or Equivalent

Stainless Steel 304 Knit Wire Mesh roll
Width: 100mm
Wire DIA: 0.3 mm
Style York / ACS 931/326/431 or Equivalent

Stainless Steel 304 Knit Wire Mesh roll
Width: 200mm
Wire DIA: 0.3 mm
Style York / ACS 931/326/431 or Equivalent



Knitted Woven Mecsh With Ripple

Knit mesh with ripple
Material : AISI 304
Wire diameter 0.25 mm or 0.26 mm
Ripple depth 5 mm
Width 350 mm
Used for demister YORK 431 style
144 kg/m3 - 80 m2/m3
H: 150 mm - 32 layer



304ss Knitted Wire Mesh Compressed Disc

304ss knitted wire mesh in 16" width and 4" width.
Pressed disc for USA

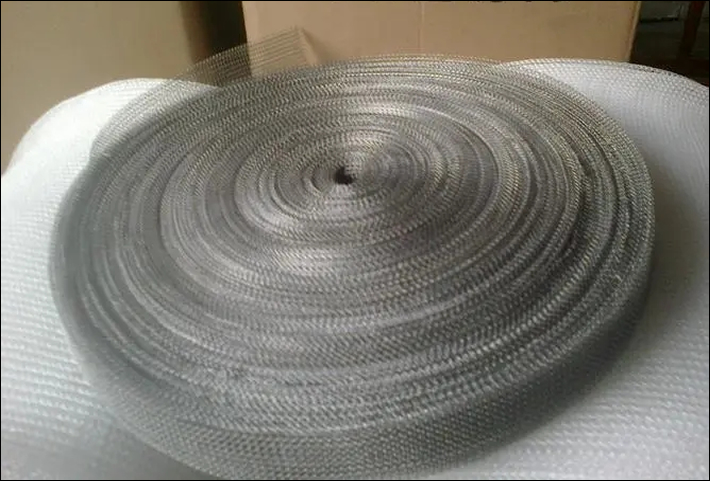

Knitted S.S. 304 Tube Mesh

Knitted tube mesh
Material: SS 304
Wire diameter from 5 to 8 cm

304 Stainless steel knitted tubular mesh
Pipe 73mm diameter
Each frame requires 16 meters of tubing
For USA



304 Knit Mesh Panels, Square Pads with Frame

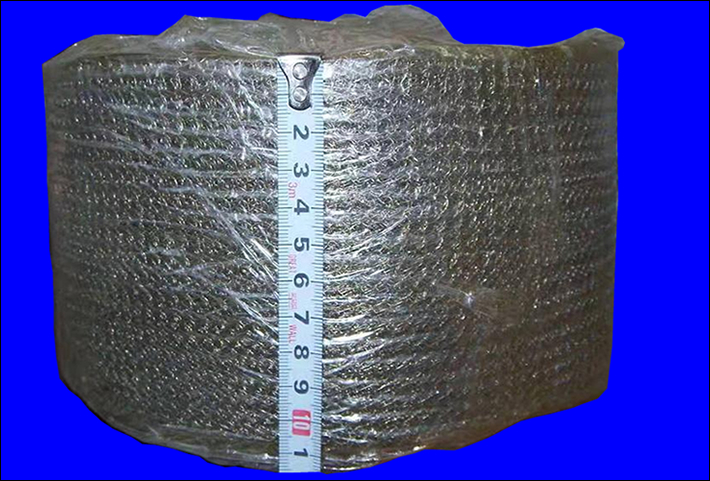

Flat Yarn Knit Wire Mesh

Stainless 304 flat yarn weave stainless steel net
Knitted / weave fabric, light weight
SS 304 Wire Mesh, Knitted Type
Roll length: 30 meters.
Roll width: 1 meter
Thickness of wire: 0.315 mm

Roll length: 20 meters.
Roll widtth: 1 meter
Thickness of wire: 0.315 mm

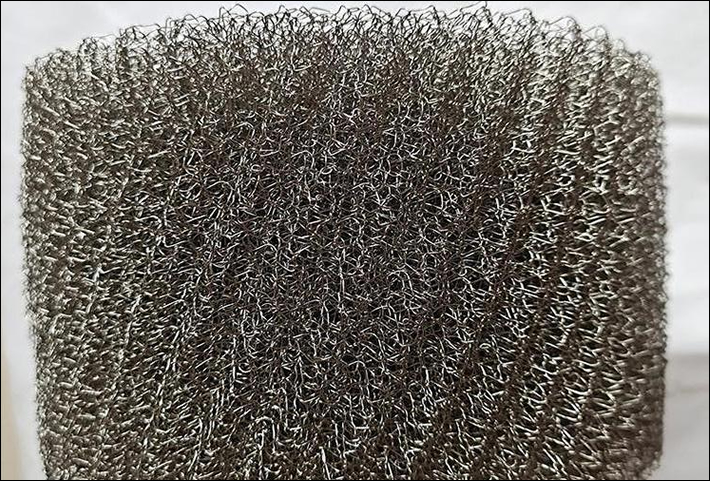

Corrugated Knitted Stainless Steel Mesh, SS 304 or SS 316

304 corrugated knitted mesh

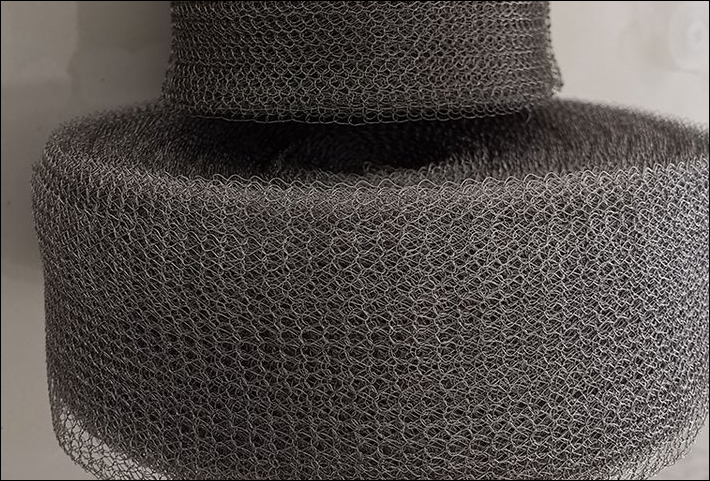

SS 304 Knitted Wire Mesh Rolls, Medium Fine Mesh and Standard Mesh


S.S Wire mesh rolls

Item Description
Medium Fine Mesh ( material: s.s 304)
a Wire Diameter 0.15 mm
b Standard Width 100 mm
c No. of stitches per cm on length 2.4
d No. of stitches per cm across lay flat 3.5
Medium Fine Mesh ( material: s.s 304)
a Wire Diameter 0.15 mm
b Standard Width 200 mm
c No. of stitches per cm on length 2.4
d No. of stitches per cm across lay flat 3.5
Standard Mesh ( material: s.s 304)
a Wire Diameter 0.3 mm
b Standard Width 100 mm
c No. of stitches per cm on length 1.6
d No. of stitches per cm across lay flat 1.9
Standard Mesh ( material: s.s 304)
a Wire Diameter 0.3 mm
b Standard Width 200 mm
c No. of stitches per cm on length 1.6
d No. of stitches per cm across lay flat 1.9
