Metal Mesh Architectural Screen, Decorative Mesh Curtains and Panels

Knitted wire mesh netting of Stainless Steel, Brass and Aluminum are popularly used for in various engineering and decorative uses. The metal mesh is processed into curtains, facade screen, partitions, wall panels and elevator wall cladding offering modern aesthetic decoration effects. Silver and gold wire are also used for decorative mesh knitting / weaving / processing.

Major Types:

Decorative Knitted Wire Mesh

For manufacturing knitted mesh partitions and ceiling decorations, mainly used in Saudi Arab and other countries.

Brass Mesh

Decoration Netting for hotels, exhibition halls and other buildings. Size of curtain nets can be customized.



Knitted Wire Mesh for Architectural project

For Australia



Stainless Steel Decorative Wire Mesh Curtains

We supply woven ss mesh of 314, 316 and 316L for modern designs. Decorative wire mesh is a new decorative materials in the modern construction industry and widely used as curtains in house, screens for dining hall, isolation in holes, ceiling decoration, decoration in trade fair exhibition and retractable sun light protection, etc.

Decorative Wire Mesh
Material	Cable Diameter	Cable Pitch	Rod Diameter	Rod Pitch	Weight
	mm	mm	mm	mm	kg/m2
SUS 314/316/316L	0.75mm*4	26.4	1.5	3.0	5.3
	1.00mm*4	36.0	2.0	4.0	7.0
	0.60mm*2	5.5	0.8	2.3	2.6
	2.00mm*4	50.0	3.0	6.0	11.56
	3.00mm*3	40.0	3.0	11.0	9.5
	2.75mm*2	40.0	4.0	14.5	9.41
	1.05mm*2	16.0	4.0	7.0	14.9
	2.00mm*3	80.0	3.0	10.0	6.6
	1.60mm*1	3.2	1.2	6.0	5.0
	2.00mm*1	3.1	1.2	5.0	10.0
	2.50mm*1	5.0	2.0	6.0	12.2

Stainless Steel Mesh of Cable Diameter( 2.5mm), Weight of 9.8kg per square meter, 6mm Cable Pitch, 2mm Rod Diameter and 8 mm Rod Pitch

Chain Link Mesh Weaving Drapery
Chain link curtains we supply are applied for partition, ceiling in airport, hotel, theaters, and exhibition decoration.
Available in copper, aluminum and stainless steel, also color painted metal. Chain link decorative mesh features excellent flexibility, cornering function, and light weight.

Metal Mesh Curtain of Aluminum Wire Diameter: 1.2 mm , 1.6 mm, with Black Powder Coating

Mesh Aperture : 5x5 mm , 6x6 mm , etc

Drapery : 1.5 times

Coating Colors : Bronze , Black , Gold , Gunmetal , Brass

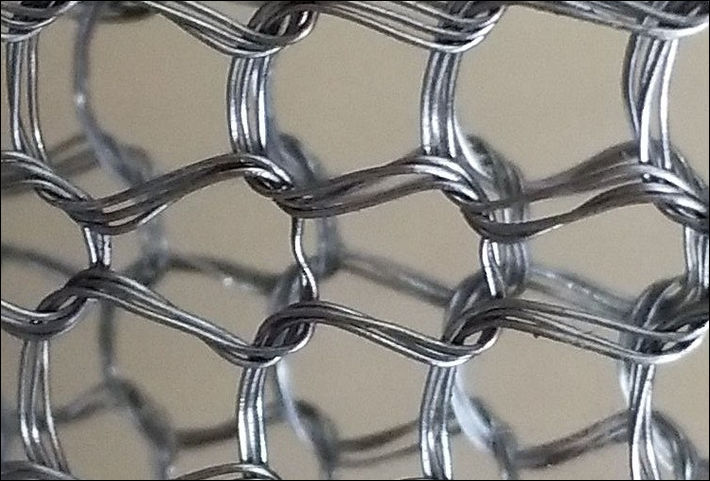

Knitted Wire Mesh Screen (Stainless steel, brass ) for Architectural Decoration

Knitted wire mesh of crimped wire are popularly used in decorations of exhibition halls, hotels and luxurious room decorations as screens, also inside and outside decorations in superior office buildings, dancing halls, business halls, shopping center and sports center, ceilings, walls, stairs and railings.

Material: Stainless steel wire (AISI304, AISI316,AISI316L); aluminum alloy, brass, copper or other alloy materials.

Stainless Steel rod and wire rope stranded knit mesh

Aluminum Wire Loop Mesh Drapery for Modern Buildings

Knitted mesh of metal meterials of brass, copper, ss and nickel with unique texture for curtains, partition and other uses

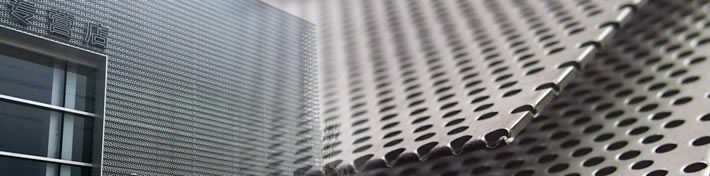

Perforated Mesh for Security, Sun Screen, Facade Decoration and Acoustic Mesh Panels

Varieties:
Decorative oval perforated stainless steel mesh for security window and doors;
Round hole aluminum metal mesh for noise barrier and acoustic wall panels;
Building decorative facade panel;
3mm/1mm Hole galvanised steel mesh;
Exterior decorative building facades;
Microporous perforated copper screen;
Aluminum expanded mesh warp knitted 3D mesh for decoration.

Hole Shape
We offer perforated panels of round, rectangular, square, triangle, diamond, hexagonal, cross, slotted openings patterns with straight line, 45 degree staggered or 60 degree staggered pitch. These sheets are available in different hole shapes, pitch, materials, sizes and sheet thickness.

Application
Perforated metal can be used for filtering, separation, protection, soundproofing and decoration, washing and drying. So it is widely used in architecture and building, chemical, food, mining and car industries as well as by sugar refineries, quarries, cements factories and construction sites, and so on.

Metal mesh for decoration enjoy the following features:

Good flexibility, strength with its versatility, unique texture, variety of colors, aging resistance, sunshine resistance, weather resistance. Degrees of transparency and flexibility and suit able for both interior and exterior applications.

Application

Decorative architectural wire screen is populary used for dining hall, isolation in hotels, ceiling decoration, animal containment, stair channel, high grade interior decoration of hotels,wire mesh facades, partition and isolation screens, staircases isolation screen, elevator cabins screen, floor covering fabrics, shade screens, shower curtains, lamp screen, metal draperies for walls.
