Knitted Wire Mesh Muffler Silencer

Knitted wire mesh with high mechanical strength, overall rigidity, good air permeability and fine density is widely used in fabricating of pneumatic mufflers for Vertical Die Grinders and other tools.

We supply multi layer and folds wire mesh mufflers to meet specific requirements.

Product Features:
Standard and special sizes available for various grinders and pneumatic tools;
Heat resistant and cold resistant materials;
The knit mesh muffler is easy to clean, to assembly and to replace with new one.


T 304 Stainless Steel Compressed Knitted Wire Mesh for Pneumatic Muffler

304 Wire Mesh Pneumatic Mufflers

Material: Stainless steel 304 316 316L 430, etc.
Wire Diameter: 0.019-2.03mm
Thickness: 2-30mm or customized size



Die Grinder Muffler Assembly

Knitted wire mesh muffler for Air die grinder, vertical die grinders.

SS 304 knitted mesh for muffler assembly in USA market

Material:
600 FT (300LBS) of knitted wire mesh
3 ½" wide, fine density, wire diameter .0045.
Wire type 304 Stainless steel, 90% void.



Knitted Wire Mesh Muffler Drawing

Cut from rolls, width: 1 3/4, 7/8, 7/16
Tolerances:
Fractional +/- .015;
Decimal +/- .005;
Angle +/- 1/2.
Muffler for Gel Grinders
Material specification: .0045 stainless steel wire mesh, 90 % voids.

Muffler dimensions: 5 1/4 in length, 7/16 in width.


Muffler Element for Grinders

Wire mesh muffler element:

Two Ply Wire Mesh Element

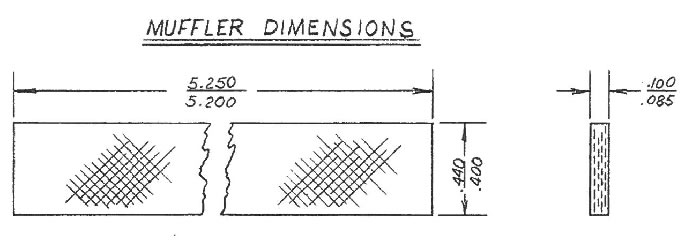

Muffler element sizes:
The muffler is made from fine density .0045 Stainless steel 304 knitted 90% void wire mesh 16 single layer. Folded according to requirements. Can be made by inserting 14 layers within a tube of wire mesh 5.250 / 5.200 inches in length

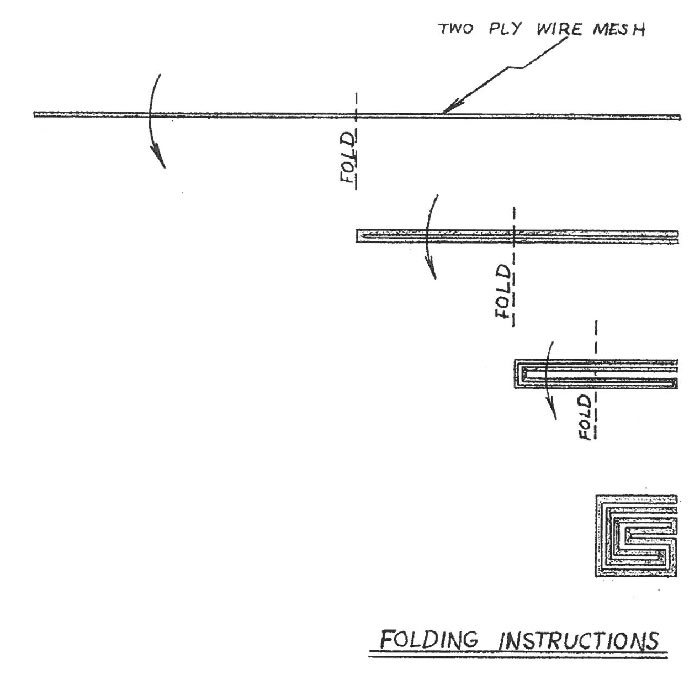

Folding Instructions of Multi Ply Wire Meshes

Fine 304 SS Knitted Wire Mesh Muffler Sizes



Knitted Wire Mesh Muffler Silencer

Muffler silencer as below specification:

Outer ring and stuffed with compressed wire mesh for air blow in and out
Application: As silencer.
