Wire Loop Knitted Mesh in Aluminum for Demister Pads / Mist Eliminators

We supply aluminum wire mesh knit woven in rolls and tapes. The fabrics of alum knit mesh are in single or double layer made of flat wire. The loop knitting aluminium mesh is mainly used in thermal engineering filter pad uses. Exported to USA and other countries.

knitted metal mesh to use it in filter constuction for galley/kitchen hoods. These filters are used for the retaining of moisture/steam and grease droplets.
Mesh material have to be available in galvanized steel, stainless steel and aluminum. Mesh have to be in rolls measuring 580 mm wide and weighting about 40 kgs each roll for easy transport.

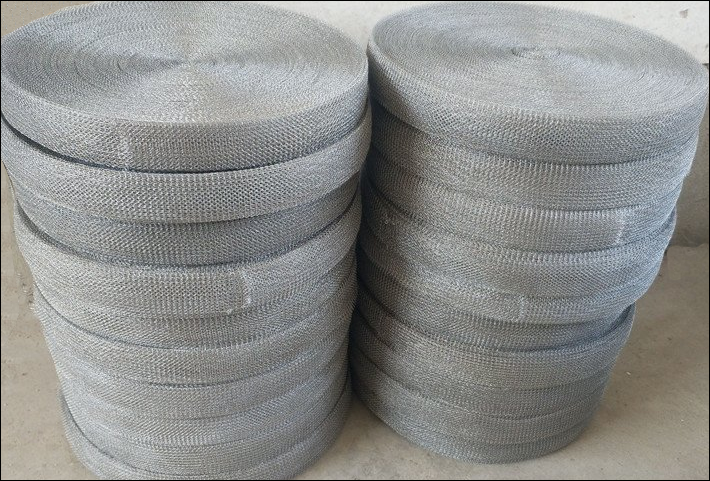

Aluminum Knitted Wire Mesh
8" wide crimped mesh: 6mm high x 10mm wide
Flat Wire Diameter: .010" thick x .030" wide. (.25mm x .76 mm approximately)
Needles: 80

Aluminum Demister Pad Knitted Mesh

6061 Aluminum Demister Pad Knit Wire Mesh

Double Layer Aluminum Screen of 540 mm roll width and roll of 600mm, for Making of Demister Pad / Mist Eliminators, 4 inch diameter



Aluminium wire mesh knitted / woven
Aluminium grade 6061
Width of roll 500mm
The holes in the mesh 5mm
Quality AS9102



Aluminum Knitted Mesh Tapes

Aluminum knitted mesh wire tubing
Thickness of Thread: 0.2 mm
Big loops around 5x5 mm
Small loops: 2x4 mm
Weight for single layer: 100 g/m2
Roll width: 540 mm, 600 mm

Aluminium Flat Wire Netting for Decoration and Filter Uses
Wire Form: Flat wire
Wire thickness: 0.12 mm
Wire width: 0.60 mm
Roll width: 600 mm



Major Applications - Choosing from Aluminium Knit Mesh Fabrics

Aluminum Alloy Filter Elements with Rating of 99% used as air filter, liquid filter, solid filter in boilers, evaporators, vaccum towers, absorbers, lube towers;
Monel and Aluminium TCS Compressed Knitted Wire Mesh Tube for Hydraulic Oil or Water Treatment;
Aluminium knitted wire mesh for airbag filter;
Powder coated knitted woven mesh for decorative curtains.


Features:

Light weight;
Corrosion resistance;
Easy maintenance;
Flexible.
