Monel Demister Pads of Knitted Fine Monel Wire Mesh Cloth in Mulitple Layer Section Blankets / Mattresses for Sulfuric acid, hydroflouric acid, brines
Monel Mesh, also known as Nickel alloy Mesh, can be used in corrosion filtration environments including sulfuric acid, hydroflouric acid, brines, and water.
We supply knitted monel mesh blankets used as demister pad in air filters, breathers and separators made for cars, trucks and farm equipment.
Our monel mesh pad demisters are exported to U.A.E, USA and many other countries.
Why Monel Wire Mesh Blankets?
The porous blankets designed and constructed of carefully knitted wire mesh can efficiently abate mist particles.
As one of major alloy materials applied, Monel is a nickel (copper) alloy that offers higher strength than unalloyed nickel while remains ductility.
Materials:
Monel 400
Nickel 201
Ni 200
N5 nickel
Types and Specifications of Monel Demister Mesh Pads and Blankets

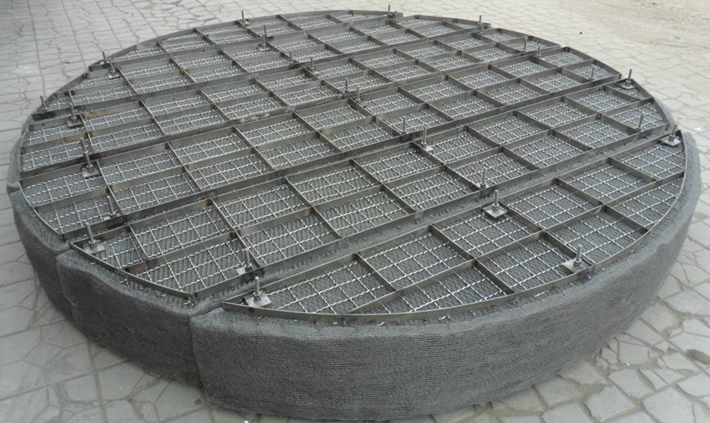

Monel Demister Pad ASTM B164 (monel 400)
Pad, mist eliminator, style: york#431
Size: 3600mm od
Thickness: 150mm, total thickness with frame: 200mm
Density: 144 kg/m 3
Material: ASTM B164 (monel 400)
Including: 1.flat bar, 25 w x 3mm t, b-127(monel), 2.square washer, 40 x 40 x 3mm t, b-127(monel ), 3.round bar, 6mm dia, b-164 monel, 4.spacer rod, 6mm dia, b-164(monel), 5.support beam, 200x200x12tx12t, sa36, 6.stud bolt with 3 nuts, m12x270l, m12x290l, f468 alloy 400.
Pad Demister Monel
Pad, demister size: 1280mm diameter
Thickness: 152mm, total thickness with frame: 202.4mm
To pass through 24 inch (i.d 545.6mm) manhole
Material: monel
Including:
Flatbar (top grid) (25 w x 3mm t, monel)
Round bar (bottom grid) (6mm dia, monel)
Spacer pipe (3/8", sch 10s, monel)
Stud bolt with 2 nuts (m12x255l, alloy 400)
Fine Monel Mesh Blankets for Vessel 320:
Structure: Layers of knitted fine monel wire mesh, assembled in multiple layer section, supported and sanwiched in monel. Lightweight grids.
Thickness:
6½ ( 150 mm )
Shape: Round circular
For vessel no: 320 with ID 746 mm in 8 pieces
Mesh style: 431
Knitted Mesh Filter Mattress made of Monel Wire Cloth
Mesh Blankets Circular Demister Pad, Vessel No: 306
Mesh Material: Knitted Monel Wire Mesh
Structure: Layers of fine woven wire mesh fabric, assembled in multiple layer section, supported and sandwiched in monel.
Thickness:
6½ ( I50 mm )
Shape: Round circular
Vessel: For vessel no: 306 with ID 2134 mm in 12 pieces
Style 431
Demister Pad of Porous Fine Mesh Blanket Designed for Vessel with Inside Diameter of 2134 mm in 12 Pieces
Monel Mesh Blankets in Square Shape 356 x 356, for Vessel No 306
Mesh Material: Knitted Monel Wire Mesh
Structure: Layers of fine woven wire mesh fabric, assembled in multiple layer section, supported and sandwiched in monel.
Thickness:
6½ ( I50 mm )
Shape: Square shape 356 x 356 mm
Vessel: For vessel no: 306 with ID 2134 mm in 12 pieces
Knit: York style 431
Knitted Fine Cloth Mist Eliminator, for Demister Vessel No: 312
Mesh Material: Nickel alloy ( monel ) Knitted Mesh
Structure: Layers of fine woven wire mesh fabric, assembled in multiple layer section, supported and sandwiched in monel. Light weight grid.
Thickness:
6½ ( I50 mm )
Shape: Round shape
Vessel no: 312 with ID 1829 mm in 12 pieces
Style: York 431
Monel Knitted Woven Mesh with Ripple
KNITTED WOVEN MESCH for TURKIYE
Material: Monel
Wire diameter 0.24 mm / 0.23 mm
Ripple depth 5 mm
Width 350 mm
Used for demister YORK 431 style
Monel Absorber Mesh
Diameter 2355mm, fixable 5 parts joined to each other
Material: monel 400
Working medium: al2o3
Monel Demister Mesh Pad
Vapor flow 5000 kg/h
Liquid flow 8 kg/h
Vapor pressure: 0,6 bar(a) à -0,4 barg vacuum
Vapor: water
Liquid: brine (water with salt)
Suggested mesh pad size: 700 mm
Mesh pad material: monel
2 piece construction for acces to demister vessel
Demister Monel for York Mesh 422
Diameter: 800 * 150 thickness mm
Type York Mesh (422) with two grids.
Corrugated Nickel 201 Knitted Mesh
Knitted corrugated mesh for Electrochemical cells
Details:
Material: Ni 201 ( Nickel alloy)
Wire diameter: 0,15mm
Mesh size: L 2687mm, W 548,5mm
