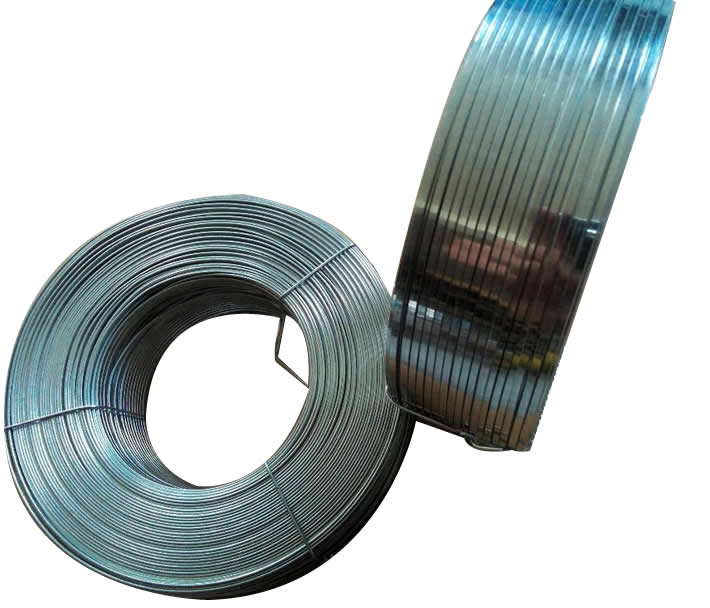

Galvanised Steel Flat Wire

We supply various flat wire for industrial processing of knit mesh, scourers, stitching wire, tie wire and binding wire. Materials cover mild steel galvanised, zinc plated, copper wire, stainless steel of 304, 430, 302, 316, etc.

0.22 mm Galvanized Iron Flat Wire for Knitting Mesh Tapes

0.22mm galvanized wire is used for the manufacture of knitted mesh scourers. The wire is smooth, white and shiny. In 15 kgs spools.

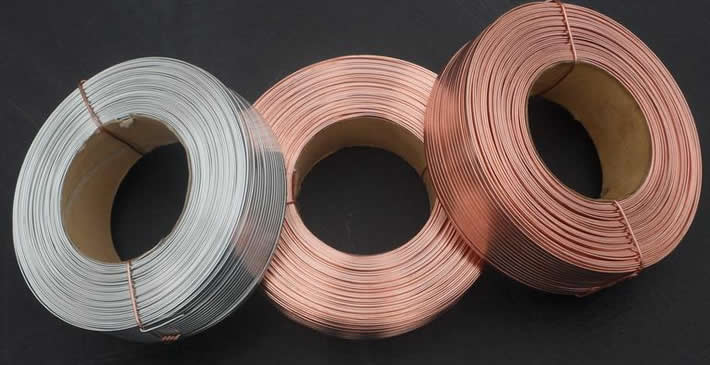

Flat Stitching Wire

Gauges:
SWG #18: width 1.83+/-0.02mm,thickness 0.71+/-0.02mm
SWG #17: width 1.95+/-0.02mm,thickness 0.75+/-0.02mm
SWG #16: width 2.15+/-0.02mm,thickness 0.80+/-0.02mm

Stitching wire
soft flat galvanized for different jobs,
size: 0.89 x 0.63mm,
tensile strength: 1235/1390 n/mm2,
vickers hardness: 318 to 420 h. v,
stiffness (stress/strain=young modulus): 190,000 gpa for steel.
elongation: 1.3%,
malleability: 90 degree bend test 6 to 8 bend to failure.
chemical analysis:
carbon: 0.35 to 0.40,
manganese: 0.50 to 0.70,
silicon: 0.18 to 0.28,
sulphur: 0.040,
phosphate: 0.040,
weight: 3.5 kgs with spool (bobbin)

Notes:
the stitching wire must be winded on the plastic spool or bobbin.
pictures of the plastic spool may be send on request (if needed).
the stitching wire must be as per approved specification and samples.

Flat Staple Wire (Galvanized).
Size: 0.8 x 0.6 mm
Packing: 2 kg Spool, Each Spool PP warping.; Cartoon box. International Seaworthy packing.

Stapling Wire (Flat, Galvanized/Nickel Coated)
Size 0.8 X 0.6 mm, Inner diameter, outer diameter and bobbin will be 20 mm, 70 mm and 60 mm respectively.

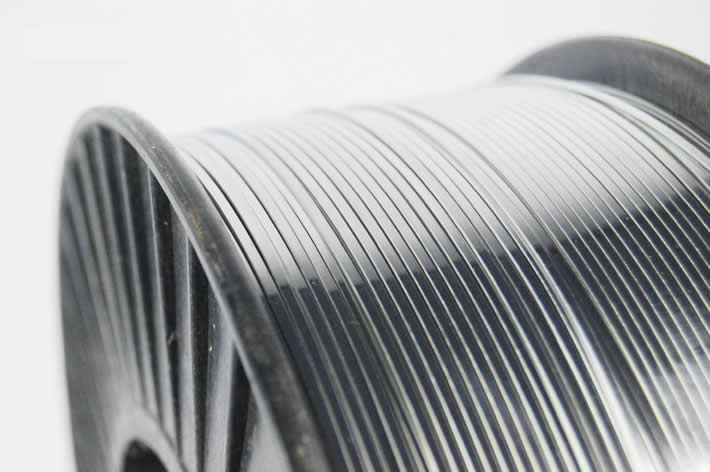

Galvanized coil wire for stitching.

Hot Dipped Galvanised Steel Wire for Stitching and Stapling

8mm Diameter carton binding galvanized flat wire for Garden Binding Paddle Wire



High Tensile Galvanized Steel Oval Wire for Binding and Packaging

Basic material for oval wire: Low carbon steel wire rod, galvanized steel wire and high carbon steel wire

Main Sizes: 2.4*3.0mm 2.2*2.7mm 2.35*2.35m. Other sizes custom made.

Processing: Oval wire is made from high quality high tensile wire by redrawing equipment, mainly used in South America and other countries for farms and fencing.

Steel Material: 45#,55# and 65# high carbon steel

Tensile Strength: 600 KGF-1400KGF

Common Sizes:

Wire Gauge Size	SWG(mm)	BWG(mm)	J. de p
12	2.64	2.77	1.8
13	2.34	2.41	2.0
14	2.03	2.11	2.2
15	1.83	1.83	2.4
16	1.63	1.65	2.7
17	1.42	1.47	3.0
18	1.22	1.25	3.4
19	1.02	1.07	3.9
20	0.91	0.89	4.4
21	0.81	0.813	4.9
22	0.710	0.711	5.4
23	0.6096	0.6347	5.9
