PTFE (POLYETHYLENE) Knitted Wire Mesh for Filter Devices

Non-metallic filter wire mesh is popularly knit woven by PTFE polyethylene or PP. We supply PTFE knitted mesh to Australia, Portugal and other countries.


Application

Knitted PTFE mesh fabrics are mainly used for gas and liquid filter.
Work temperature: -200~+250
Features: Good anti-corrosion: Good acid resistance, alkali resistance, etc.


Material:

Mixed fabric, fibre wire, PTFE wire mesh, PP, PC, PE, etc.
Range:0.10mm-0.55mm (common wire through is: 0.20mm - 0.25mm).
Hole Size: (2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same,width is different).
The surface condition of knitted mesh: Flat-type mesh surface and pressed into a corrugated bellows-type network surface (the width of the corrugations and the depth of the different specifications.
The Common Width of knitted mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, etc.

PTFE mesh is mainly used for processing demister for separation of the gas inside the droplets. Can also be extrusion molding for manufacturing a filtration device.

PTFE Mesh Specification

Type Common Specification
Standard 40-100 60-150 105-300 140-400 160-400 200-570
High efficiency 60-100 80-100 80-150 90-150
150-300 200-400 300-600
Strong penetration 20-100 30-150 70-400 100-600 170-560
Damping 33-30 38-40 20-40 26-40 30-40
30-50 48-50 30-60 30-80-50-120


Major Types

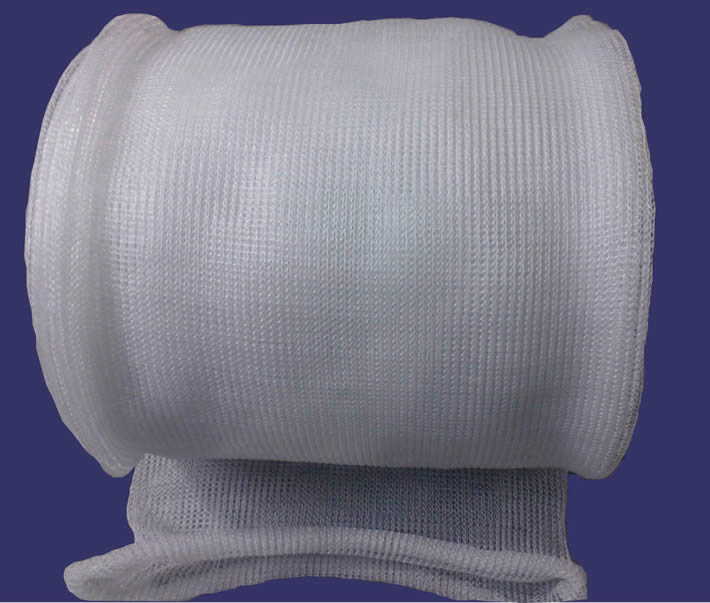

PTFE Knitted Mesh in rolls

PTFE knitted mesh rolls
Wire diameter approximately 0.25 mm
Roll width 305 mm to 310 mm
Herringbone crimp through the mesh

Knitted Net

Woven knitted fabric, 100% polyethylene
Made from continuous synthetic lamines of 100% polyethylene, dyed
185 dtex high density
Rectangular profile
In 12.8 cm width rolls



POLYETHYLENE Knitted Mesh in tube form

Polyethylene Monofilament Yarn Knitted Mesh Band

60kgr polyethylene knitted wire mech for scrubber
WET-FILTER SECTION
Material: PTFE
Tube flattened width: 100 mm ± 8 mm
Structure: Single wire structure
Wire diameter: 0.3 mm
Hole: about 4 mm
Weight: about 120 - 160 g/m²

HDPE Mesh Netting

HDPE knitted mesh, 9 needle, 100m long and 2m wide
Color: Black.
Also Knitted Mesh, 6 needle.

Polyethylene knitted wire mesh in tube form for scrubber filter

Wire diameter specifications range: 0.08mm ~ 0.30mm of flat or round wire.

Knitted mesh for gas liquid separation
Material: Knitted mesh nylon
