Knitted Mesh, Knitted Demister Pad and Filter Materials for Automotive, Exhaust Systems, Shielding, Filters

Our company manufactures and exports knitted mesh and knit mesh filters, gaskets and other technical items for industrial uses.

Our knitted wire mesh is supplied with different opening size and mesh types ( (fine, coarse, standard, medium opening).

The metal and non metal knitted wire mesh find extensive uses in Electrolysis, Fuel Cells, Membrane technologies, Electronics, Vehicle components, Heat Shielding, EMI shielding and various Filter Elements.

We export to UK, USA, Thailand, Europe, Portugal, Australia, Canada and etc.

Together with products, we offer Specification, Technical Data Sheet, MSDS (material safety data sheet) and other documents for references.

Samples (a piece of sheet of 20 x 30 cm normally for mesh tapes, and 1 meter knit mesh for mesh rolls ).



Non-metallic yarn / monofilament materials:

PTFE polyethylene
Polypropylene (PP)
Nylon
Glass fiber
FRP
PVC and so on.



Metal Wire Materials

Galvanized Flat Wire ( 0.22 mm galvanized flat wire for the manufacture of knitted mesh)
Stainless Steel Crimped Wire
Copper Wire, Pure copper or tinned copper wire
Flat and round stainless steel wire
Monel nickel wire
Copper wire
Brass wire
Plated metal wire
Coated steel wire



Knitted Meshes Varieties



316SS and 304 SS Knitted Wire Mesh:

Double-knits SS Wire Mesh

Mesh:
size: 16" wd x 50m lg
Wire diameter: 0.3-0.35mm
Material: corrugatted 304/316 ss knitted
Application: Eliminator / demister pad

Yorkmesh in ply shape
Mesh will be used in demister pads / mist eliminator.
Packing: 50m/roll

Flat Wire, Continuous Knitted Type.

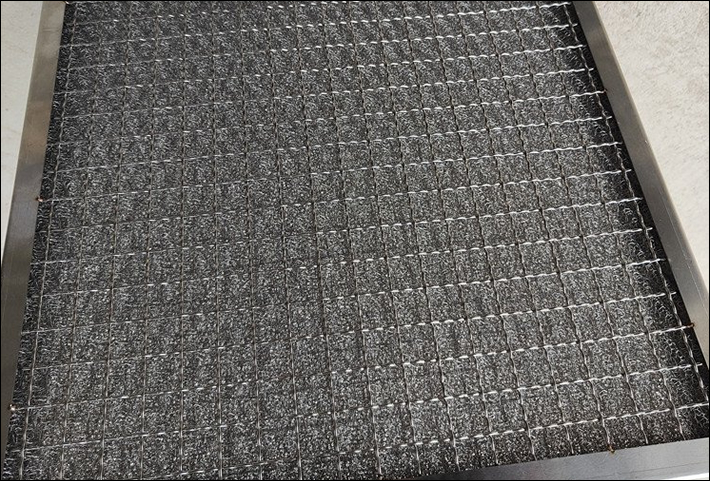

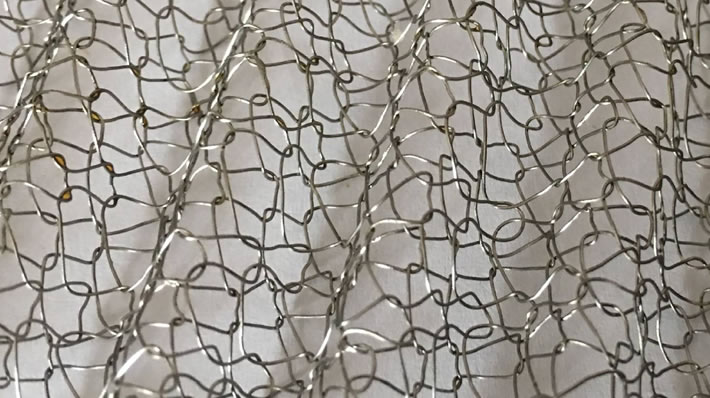

SS304 or 302 knit Mesh Rolls with Crimped Wire. Monofilament wire (0.28mm dia) duly knitted and crimped popular for making of demister pad. SS 309 also available.

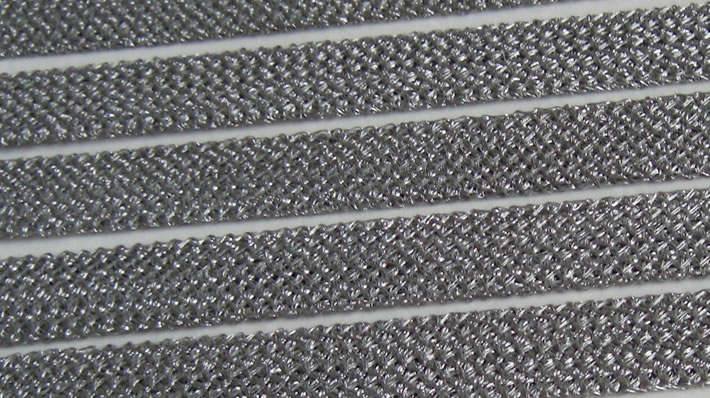

430 Stainless Steel Knitting Mesh Rolls



Knitted Porous Mesh

SS Knitted Wire Mesh Rolls
Mesh: 16" width X 50 m length, 0.3-0.35 mm diameter wire
To be used IN DEMISTER PADS / MIST ELIMINATOR

Knitted Wire Panels with welded crimped wire

Teflon Knitted Mesh
Knitted Copper Mesh Netting

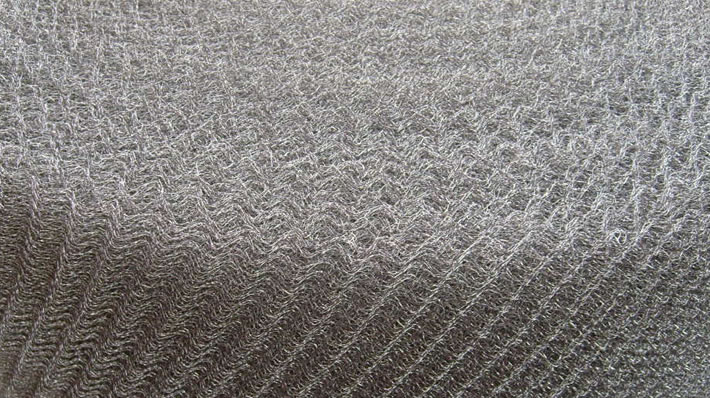

Aluminum Knitted Wire Mesh



Nickel Alloy ( Inconel and Monel ) Mesh offers high level corrosion resistance and high strength, suitable for chemical and seawater environment.

Inconel Knitted Wire Mesh Fabric

Knitted Mesh in Inconel 625
Material: Inconel 625
Wire diameter ≥0.25 mm
Width 1 m.
L 30 m./roll

Monel Mesh Rolls and Filter Blanket, Pads and Belts
Mainly used in conductive cushions in electrochemical equipment, electrical connections and seals in marine engineering.



Nickel Knitted Metal Mesh Fabric with precise composition
Can be cut to size for fabrication
Material:
Ni200 product
N5 nickel product
For component of electrolyser cell



Non Metal Monofilament Yarn Knitted Mesh

KNITTED WIRE MESH and Band
Material: PTFE, PP, ETFE, ECTFE, FEP, FPA, other similar materials
Width: Various width, from 25 mm to 150 mm;
Thickness: Different thicknesses.

Tube or Band:
Material: PTFE, PP, ETFE, ECTFE, FEP, FPA, nylon, polyester, fiberglass, also other materials;
Width: Various width, from 25 mm to 150 mm;
Thickness: Different thicknesses from 0,1 mm to 1 mm.

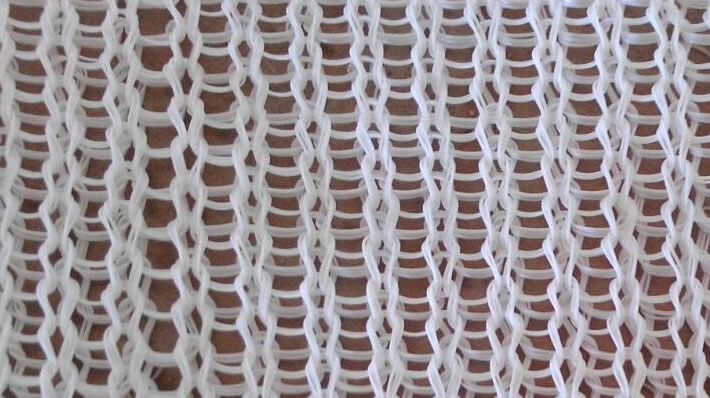

PTFE Monofilament Knitted Wire Mesh


Polyester Mesh

General Technical Information:
Knitted Mesh Structure, Common Specification and Materials,
Weight Lists of Different Materials.



Knitted Mesh Processed Filters and Various Components

Shielding Knitted Mesh for Electronics and Telecoms: Wire mesh against Electromagnetic interference ( simplified as EMI) and Radio Frequency Interference ( simplified as RFI).

Airbag Filters
Exhaust system parts
Knitted sieves

Forms including Blankets, Demister Pads, Rings, Mist Eliminators, Compressed Gaskets, Tubes, Tapes, Breathers, Mufflers and Shieldings.

Knitted sieves with square opening made of stainless steel 19 (C4578), with dimensions 1000 x 3500 mm, sieve opening 4.2 x 4.2 mm

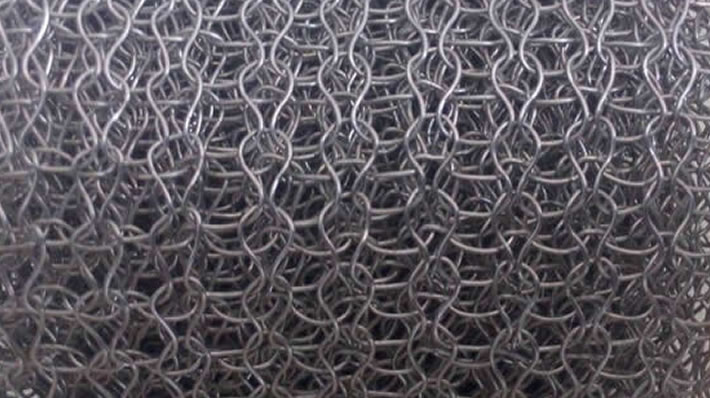

Mesh Blankets ( Demister Pad Blanket, Knitted Mesh Blanket)

Compressed Knitted Wire Mesh Gaskets: Knitted Wire Tube Axial Compressed: material: 304 Stainless steel knitted mesh; low-frequency magnetic shielding gaskets and seals.

Vane Type Mesh Demister Pad ( AISI304 and Stainless Steel 316 Demister Separator. Demister Filter Pads for Separator skid) . Popularly supplied in designed small sectional pad with grids. To fit customers needs, we supply Various types of pads: high efficiency, standard and shock absorption type.

Knitted Wire Mesh Tubing (Stainless SteelMesh Tube, Tapes, Tin Copper Wire Knitted Wire, Copper or white metal)

Non Metal Polypropylene Mesh Mist Eliminator (Polypropylene Mist Eliminator corrugated knitted wire mesh )

Metal Wire Mesh Screen (Stainless steel, brass, aluminum and other metals ) for Architectural Decoration: Knitted woven mesh, perforated mesh, chain link and expanded decorative mesh used as Curtains, Partitions, Facades.
